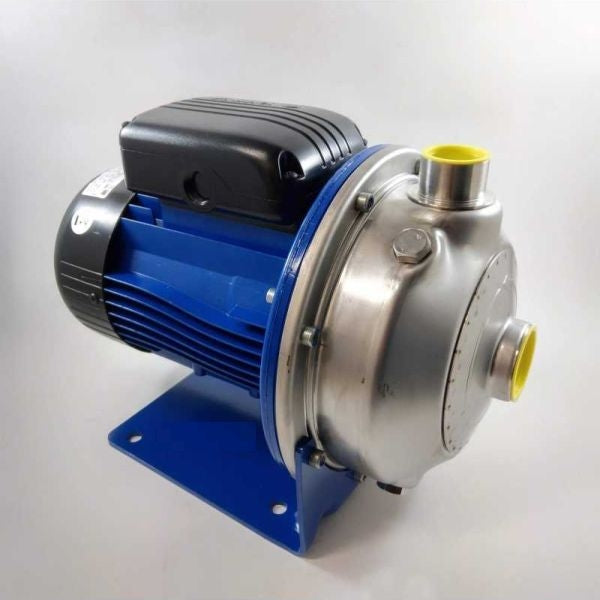

LOWARA SINGLE-IMPELLER CENTRIFUGAL ELECTRIC PUMP CEAM 70/5 0.75 HP SINGLE-PHASE

Vendor: Lowara

Description:

LOWARA SINGLE-IMPELLER CENTRIFUGAL ELECTRIC PUMP mod. CEAM 70/5 HP 0.75 SINGLE-PHASE: Single-impeller monobloc centrifugal pump with axial suction and radial discharge.
General Characteristics
LOWARA


Water is the most widespread element in the world, and on a global scale, Lowara shares the leading position of the Xylem group, of which it is a part, for the design and production of pumps and pumping systems.
For almost 40 years, Lowara has been synonymous with innovation and quality, reliability and impeccable service for all water pumping problems.
From its headquarters in Montecchio Maggiore, in the province of Vicenza, through a widespread network of branches and distributors, Lowara products reach customers
all over the world and are intended for the most specific applications. Because quality and technology are combined with the expertise and availability that have always distinguished Lowara.

In 2005, the European Union approved the new Directive 2005/32/EC establishing a framework for the setting of ecodesign requirements for energy-using products. This directive is known as the Eco-design Directive.
The purpose of the Eco-design Directive is to reduce energy consumption and other negative environmental impacts. The target for 2020 is a 12% reduction in 2007 consumption, which is a total saving of 341 TWh (terawatt hours). The Lowara products affected by the Eco-design Directive are:



Electric motors used in surface pumps: Since June 16, 2011, Lowara has complied with legislation and supplies motors with IE2/IE3 efficiency levels.

Circulators: The Eco-design directive also requires the use of more efficient wet rotor circulators in heating systems.
From January 1, 2013, circulators** must be class A. The EEI index (the index that determines the energy class) for class A will be modified from 0.4 to 0.27.

Clean water pumps: Clean water pumps, to be placed on the European Union market, must have an MEI (minimum hydraulic efficiency value) greater than 0.1.


CEA- CEA(N) Series


Single-impeller centrifugal electric pumps

Application sectors: civil, agricultural, industrial

Uses: AISI 304 version

Pumping of water and chemically and mechanically non-aggressive liquids*.
Water supply.
Irrigation.
Water circulation (cold, hot, chilled).

Characteristic data:


PUMP


Flow rate up to 520 l/min (31 m3/h)
Heads up to 32 m.
Temperature of the pumped liquid:
-10°C to +85°C standard version.
-10°C to +110°C (N and V versions).
Maximum operating pressure: 8 bar (PN 8).
Counter-clockwise rotation when looking at the pump from the suction port side.
MOTOR


Asynchronous, squirrel-cage rotor, enclosed construction, external ventilation.
Protection degree: IP55.
Insulation class 155 (F).
Performance according to EN 60034-1.
Standard voltage:
- Single-phase versions: 220-240 V 50 Hz, 2 poles, automatic reset overload protection up to 1.5 kW. For higher powers, overload protection must be provided in the control panel by the user.
- Three-phase versions: 220-240/380-415 V 50 Hz, 2 poles, overload protection must be provided in the control panel by the user.
Condensate drain plugs in the standard version.
Three-phase surface motors ≥ 0.75 kW supplied as standard are IE2/IE3 according to Regulation (EC) No. 640/2009 and IEC 60034-30.


Construction features:

Single-impeller monobloc centrifugal pump with axial suction and radial discharge.
Compact construction with directly coupled motor and pump; special protruding motor shaft shared with the pump, supported by ball bearings.
Rotating part removable from the drive side without removing the pump casing from the system piping.
Threaded suction and discharge ports (Rp ISO 7).
High-efficiency closed impeller in AISI 304 stainless steel (AISI 316 for N version).
Mechanical seal with Ceramic/Carbon rings, NBR elastomers, (EPDM for N version) other parts in AISI 304 stainless steel (AISI 316 for N version), mounting dimensions according to EN 12756 (formerly DIN 24960) and ISO 3069.
OR gaskets in NBR (EPDM for N version).
Foot support on the pump body
