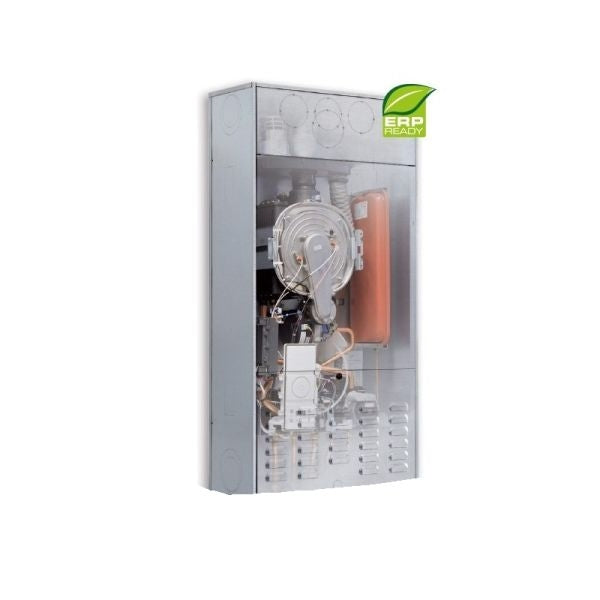

SAVIO EDILIA HE 35 S BUILT-IN CONDENSING BOILER WITH FLUE KIT

Vendor: Savio

Description:

SAVIO EDILIA HE 35 S BUILT-IN CONDENSING BOILER WITH FLUE KIT, NATURAL GAS POWERED, OPTIONAL CASING (TO BE PURCHASED SEPARATELY)
EDILIA
Edilia HE is Savio's new range of built-in condensing wall-mounted boilers. Excellent performance and high efficiency that lasts over time thanks to the innovative heat exchanger. Easy to use thanks to the digital control panel with a display designed to communicate with the user in an easy and convenient way.

Available in versions for heating and domestic hot water production, Edilia HE offers a complete range of powers, 20 and 35 kW combi models in the same extremely compact dimensions: 1200 x 600 x 240 mm.

Both versions of Edilia HE are in class A, thus benefiting from tax deductions according to current regulations.

Main Features

High efficiency (★★★★ compliant with dir. rend. 92/42 CEE and D.lgs. 311/06)
Domestic hot water comfort (★★★ EN 13203)
Stainless steel condensing primary exchanger with steel coating to offer maximum corrosion resistance
Fully premixed burner, made of stainless steel (NOx Class 6)
1:5 modulation for natural gas and also LPG
Stainless steel plate heat exchanger for domestic hot water
7 l expansion vessel for mod. 25S and 10 l for mod. 35S
High-efficiency pump with low energy consumption
Maximum power adjustable according to the system
IPX5D protection rating
Built-in wall installation
Integration with Savio solar systems, using a solar kit
Digital control panel with backlit display
Analog pressure reading on the machine, digital on the remote
Pre-arranged for remote control (optional) and external probe as standard
High circulation single coil primary exchanger

Savio introduces the new stainless steel heat exchanger for condensing boilers to the market: Round. Round is a compact monothermal heat exchanger based on a stainless steel coil with an oval section.

The heat exchanger consists of a combustion chamber, a condensation zone and an insulated metal disc protected with ceramic silicone fiber that separates the two areas. By using a single stainless steel strip to produce the coil, including inlet/outlet connections, the following advantages are obtained:

Avoids the accumulation of dirt and debris
Water flow is evenly distributed and ensures homogeneous heat exchange
Water flow is constant for a longer product life
Reduction of pressure drops with an optimized circuit
The ease of cleaning and robustness of this exchanger are one of the product's main strengths, as it can be used on new systems but also on old systems in the event of renovations.

Round integrates the round flow function in which the water produces a centrifugal cleaning effect on the internal walls of the single coil. The absence of parallel circuits ensures easy "washing" of the exchanger and the elimination of any air present in the system circuit.

Thermoregulation

By connecting the external probe (standard) and the remote control (optional) directly to the boiler, climatic regulation can be used. Edilia HE will adapt the system water temperature to external climatic conditions, ensuring the desired room temperature is reached without waste and optimizing consumption.
By using climatic regulation, the regulation efficiency also increases, adding more value to your home.
