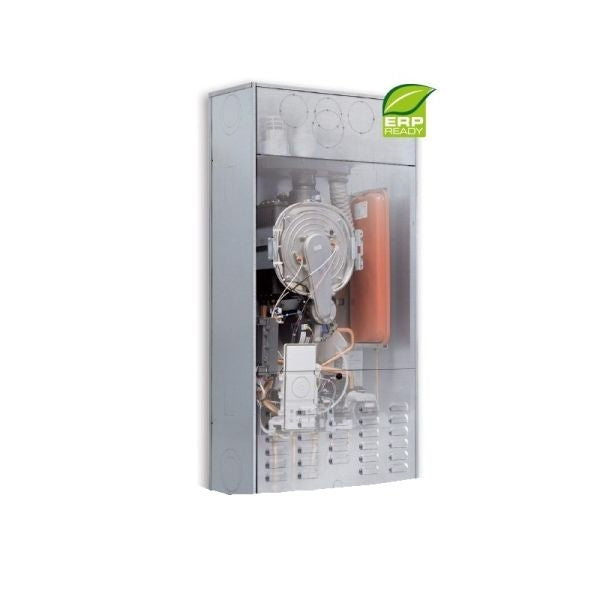

SAVIO EDILIA HE 25 S BUILT-IN CONDENSING BOILER WITH FLUE KIT

Vendor: Savio

Description:

SAVIO EDILIA HE 25 S BUILT-IN CONDENSING BOILER WITH FLUE KIT, LPG POWERED, OPTIONAL CASING (PURCHASED SEPARATELY)
EDILIA
Edilia HE is Savio's new range of built-in condensing wall-mounted boilers. Excellent and long-lasting performance thanks to the innovative heat exchanger. Easy to use thanks to the digital control panel with a display designed for easy and convenient communication with the user.

Available in versions for heating and domestic hot water production, Edilia HE offers a complete range of powers, 20 and 35 kW combi models in the same extremely compact dimensions: 1200 x 600 x 240 mm.

Both Edilia HE versions are in class A, thus benefiting from the tax deduction according to current regulations.

Main Features

High efficiency (★★★★ compliant with dir. eff. 92/42 CEE and Legislative Decree 311/06)
Domestic hot water comfort (★★★ EN 13203)
Stainless steel condensing primary exchanger with steel coating to offer maximum corrosion resistance
Total premix burner, made of stainless steel (NOx Class 6)
Modulation 1:5 Methane and also LPG
Stainless steel plate heat exchanger for domestic hot water
7 l expansion tank for mod. 25S and 10 l for mod. 35S
High-efficiency pump with low energy consumption
Maximum power adjustable according to the system
Protection degree IPX5D
Built-in wall installation
Integration with Savio solar systems, using a solar kit
Digital control panel with backlit display
Analog pressure reading on board the machine, digital on the remote
Prepared for remote control (optional) and external probe as standard
High-circulation single-coil primary exchanger

Savio introduces the new stainless steel heat exchanger for condensing boilers: Round. Round is a compact single-flow heat exchanger based on a stainless steel coil with an oval section.

The heat exchanger consists of a combustion chamber, a condensation zone, and an insulated metal disk protected with silicone ceramic fiber that separates the two areas. By using a single stainless steel strip to produce the coil, including inlet/outlet connections, the following advantages are obtained:

Prevents the accumulation of dirt and debris
Water flow is evenly distributed and ensures homogeneous heat exchange
Water flow is constant for a longer product life
Reduction of pressure drops with optimized circuit
The ease of cleaning and robustness of this exchanger are one of the main strengths of the product, as it can be used on new systems but also on old systems in case of renovations.

Round integrates the round flow function in which the water produces a centrifugal cleaning effect on the internal walls of the single coil. The absence of parallel circuits ensures easy "washing" of the exchanger and the elimination of any air present in the system circuit.

Temperature Control

By connecting the external probe (standard) and the remote control (optional) directly to the boiler, climatic regulation can be used. Edilia HE will adapt the system water temperature to external climatic conditions, ensuring the desired ambient temperature is reached without waste and optimizing consumption.
Using climatic regulation also increases the regulation efficiency, adding more value to your home.
